FRONT SEATS WITH ELECTRIC CONTROLS

  • 1
  • 2
  • 3
  • 4
  • 5

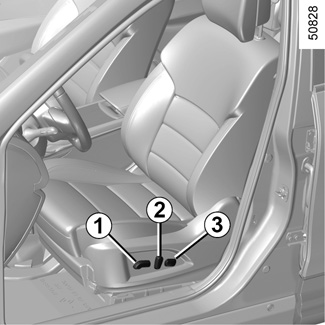

Adjusting the seat squab:

- To move the seat forwards or back

Move the switch 1 forwards or backwards.

- To raise or lower the seat base

Move the switch 1 up or down.

Adjusting the seatback:

To tilt the seatback, move the switch 2 forwards or backwards.

To adjust the seat’s lumbar position

Lower the handle 3 to increase the support and lift to decrease it.

Make sure that the seatbacks are correctly locked in place.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

Make sure that the seatbacks are correctly locked in place.

We would advise you not to recline the seatbacks too far to ensure that the effectiveness of the seat belts is not reduced.

No object should be placed on the floor (in front of the driver). such objects may slide under the pedals during sudden braking manoeuvres and obstruct their use.

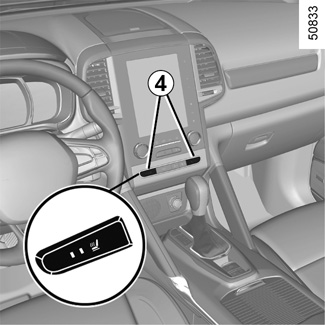

Heated seats

With the ignition on,

- depending on the vehicle pressing the switch 4 or 5 on the required seat for the first time activates the heating system at maximum power.

Both integrated switch warning lights come on;

- a second press decreases the heating to minimum power. One integrated warning light comes on;

- pressing for the third time turns the heating off.

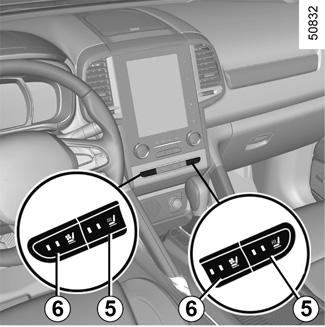

Ventilated seats

Ventilation seats work on the principle of absorbing and exporting the air in the passenger compartment without using the vehicle’s air conditioning and heating functions. For the best performance, you are advised to use this function with air conditioning switched on.

With the ignition on:

- pressing the switch 6 on the required seat for the first time activates the ventilation system at maximum power. Both integrated switch warning lights come on;

- a second press decreases the ventilation to minimum power. One integrated warning light comes on;

- a third press switches off ventilation.

Note: if you switch off the engine and restart it, the ventilation or heating function will be off.
