FRONT SEATS WITH MANUAL CONTROL

  • 1
  • 2
  • 3
  • 4
  • 5

Settings

To move the seat forwards or back

Lift and hold the handle 1 to unlock the seat. Release the handle at the desired position and make sure that it is locked.

To raise or lower the seat base

Move the lever 2 as many times as necessary upwards or downwards until the required position is reached.

To tilt the seatback

Lift handle 3 and tilt the seatback to the desired position. Release the handle at the desired position and make sure that it is locked.

For safety reasons, make these adjustments only when the vehicle is stationary.

We would advise you not to recline the seatbacks too far to ensure that the effectiveness of the seat belts is not reduced.

Nothing should be placed on the floor (area in front of driver) as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use.

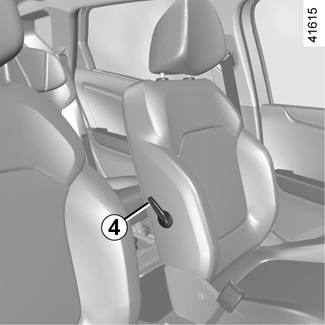

To adjust the seat’s lumbar position

Lower handle 4 to increase the support and lift it to decrease it.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

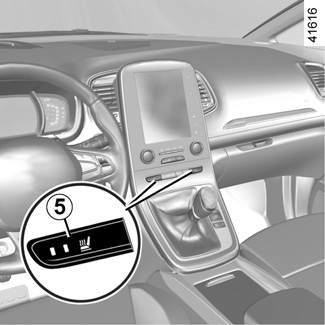

Heated seats

With the ignition on:

- pressing the switch 5 on the required seat for the first time activates the heating system at maximum power. Both integrated switch warning lights come on;

- a second press decreases the heating to minimum power. One integrated warning light comes on;

- pressing for the third time turns the heating off.

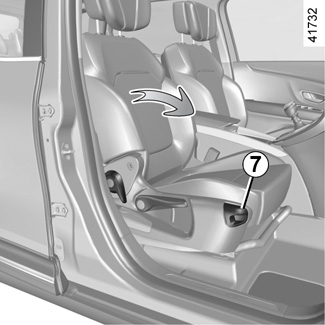

Table function

Depending on the vehicle, the passenger seatback may be folded down onto the seat base to create a table.

- Lower the headrest;

- move the seat back;

- lower the seat base fully;

- pull the handle 7 and fully lower the seatback.

When using the passenger seat in table position, you must not use the two rear seats immediately behind it.

Repositioning the seat

Make sure that nothing prevents the seat from moving.

It is essential to pull the handle 7 to raise the seatback. Ensure it is correctly locked in place.

For your safety, attach any transported objects when the seat is in the table position.

Be sure to hold the seatback when placing the seat in table position.

Risk of injury.

When the front seat is in table position, the front passenger airbag airbag must be deactivated (see the information on “Child safety: activating/deactivating the front passenger airbag” in Section 1).

Risk of serious injury caused by items resting on the seatback table which may be dislodged when the airbagairbag is deployed.

The label (on the dashboard) and the markings (on the windscreen) remind you of these instructions.

For safety reasons, carry out any adjustments when the vehicle is not being driven.
