BOOT ARRANGEMENTS

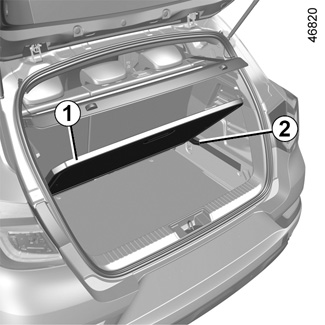

Mobile floor 1
Flat position
Enables you to flatten the floor by folding down the back of the rear bench seat and to compartmentalise the boot into two distinct spaces.
The mobile floor is positioned on the runner 2.
Maximum weight for the mobile floor: 100 kg evenly distributed.
Intermediate position
In the blocked position, it allows you to access the tools stored under the boot carpet.
- Remove the mobile floor 1;
- position it in the luggage compartment, using the 2 runners provided.
Storage position
(depending on the vehicle)
This allows for more space to store things in the boot.
- Remove the mobile floor 1;
- move the rear seat forwards using the lever located beside the rear seats REAR BENCH SEAT: functions;
- place the mobile floor 1 in the luggage compartment, under the runner 2.
If necessary, remove the inflation kit 3 before placing the false floor in the lower position.
