ACTIVE EMERGENCY BRAKING

  • 1
  • 2
  • 3
  • 4
  • 5

Using information from the radar 2 and camera 1, the system calculates the distance which separates it from the vehicle in front and any surrounding pedestrians and cyclists.

The system informs the driver if there is a risk of head-on collision to enable appropriate emergency manoeuvres (pressing the brake pedal and/or turning the steering wheel).

Depending on the reactivity of the driver, the system can assist with braking in order to limit damage or prevent a collision.

Note: ensure that the windscreen and front bumper are not obstructed (by dirt, mud, snow, condensation, number plate, etc.).

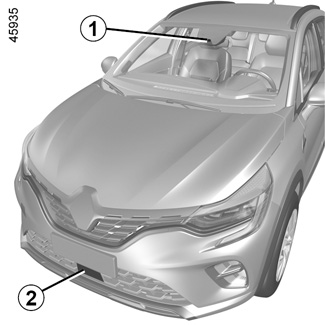

Location of the camera 1

Make sure the windscreen is not obscured (by dirt, mud, snow, condensation etc.).

Location of the radar 2

Ensure that the radar area is not obstructed (by dirt, mud, snow, a badly fitted front number plate), impacted, modified (including painting) or hidden by any accessory fitted on the front of the vehicle (on the grille or logo etc.).

This system can apply maximum braking to the vehicle until it is completely stationary if necessary.

For safety reasons, always wear your seat belt when travelling in your vehicle and make sure that it is loaded so that no items can be thrown forward and hit the occupants.

This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle.

Operation

Detection of vehicles

When driving at a speed between approximately 4 mph (7 km/h) and 105 mph (170 km/h), if there is a risk of collision with the vehicle in front, the system:

- warns you of a collision risk:

- the “Brake” message is displayed in red on the instrument panel 3, accompanied by a sound signal.

If the driver depresses the brake pedal and the system still detects a risk of collision, the brake force is increased.

- may trigger braking:

if the driver fails to react following the alert and collision becomes imminent.

If the vehicle stopped as a result of active emergency braking, the driver must keep the vehicle stationary by applying the brake pedal.

Note: if the driver uses the vehicle controls (steering wheel, pedals, etc.) the system may delay certain operations or not activate.

Special features of warnings

Depending on the speed, the warning and braking may be activated simultaneously.

Special features of stationary vehicles

Stationary vehicles are detected when your vehicle is being driven at a speed between approximately 4 mph (7 km/h) and 50 mph (80 km/h). The system is not active and does not emit a warning for stationary vehicles when you exceed approximately 50 mph (80 km/h).

In the event of emergency manoeuvre, you can stop braking at any moment by:

- tapping the accelerator pedal;

or

- turning the steering wheel as a collision avoidance manoeuvre.

Detection of pedestrians and cyclists

(depending on the vehicle)

When driving at a speed between approximately 4 mph (7 km/h) and 50 mph (80 km/h), if there is a risk of collision with a cyclist or pedestrian, the system:

- warns you of a collision risk:

- the é “Brake” message is displayed in red on the instrument panel 3, accompanied by a sound signal.

If the driver depresses the brake pedal and the system still detects a risk of collision, the brake force is increased.

- may trigger braking:

if the driver fails to react following the alert and collision becomes imminent.

If the vehicle stopped as a result of active emergency braking, the driver must keep the vehicle stationary by applying the brake pedal.

Note: if the driver uses the vehicle controls (steering wheel, pedals, etc.) the system may delay certain operations or not activate.

Special features of warnings

Depending on the speed, the warning and braking may be activated simultaneously.

In the event of emergency manoeuvre, you can stop braking at any moment by:

- tapping the accelerator pedal;

or

- turning the steering wheel as a collision avoidance manoeuvre.

Activating or deactivating the system

For vehicles fitted with a multimedia screen 4

To activate or deactivate the function, refer to the multimedia instructions.

Select “ON” or “OFF”.

For vehicles not fitted with a multimedia screen

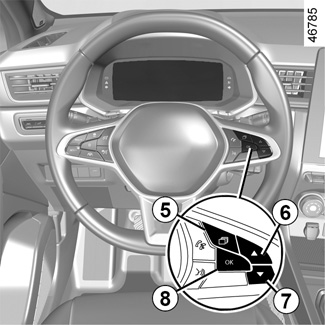

- With the vehicle stopped, press the switch 5 as many times as required to reach the “Vehicle” tab;

- press the 6 or 7 control repeatedly to reach the “Settings” menu. Press the switch 8 OK;

- press the 6 or 7 control repeatedly to reach the “DRIVING ASSIST” menu. Press the switch 8 OK;

- press the 6 or 7 control repeatedly to reach the “Active braking” menu and press the 8 OK switch.

Press the switch 8 OK again to activate or deactivate the function:

= function activated

< function deactivated

Upon deactivation of the system, the warning light illuminates or, depending on the vehicle, the warning light illuminates on the instrument panel.

This system is reactivated each time the ignition is switched on.

Temporarily not available

If the system detects a temporary fault the warning light illuminates, or depending on the vehicle, the warning light illuminates on the instrument panel.

The possible causes are:

- the system is temporarily blinded (glare from the sun, dipped beam headlights, bad weather conditions etc.). The system will be operational again when visibility conditions are better;

- the system is temporarily interrupted (e.g. the windscreen or the front or rear bumper is obscured by dirt, mud, snow, condensation, etc.). In this case, park the vehicle and switch off the engine. Clean the windscreen and front bumper. When you next start the engine, the warning light and the message go out.

If this is not the case, this may arise from another cause; contact an Approved Dealer.

Operating faults

© and or, depending on the vehicle, © and illuminates on the instrument panel: this indicates that the system has detected an operating fault. Consult an approved dealer.

Active emergency braking

This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. The triggering of this function may be delayed or prevented when the system detects clear signs of control of the vehicle by the driver (action on the steering wheel, pedals etc.).

The system cannot be activated:

- when the gearbox lever is in neutral or the clutch pedal has been depressed during approximately ten seconds;

- when the parking brake is activated;

- when the Electronic Stability Program (ESC) has started.

System servicing/repairs

- In the event of an impact, the radar and/or camera alignment may be changed and its operation may consequently be affected. Deactivate the function and consult an authorised dealer.

- Any work in the area where the radar and/or camera is located (repairs, replacements, windscreen modifications, etc.) must be carried out by a qualified professional.

Only an authorised dealer is qualified to service the system.

System disturbance

Some conditions can disturb or damage the operation of the system, such as:

- a complex environment (metal bridge, tunnel etc.);

- poor weather conditions (snow, hail, black ice etc.);

- poor visibility (night, fog etc.);

- poor contrast between the object (vehicle, pedestrian etc.) and the surrounding area (e.g. pedestrian dressed in white located in a snowy area etc.) ;

- being dazzled (glaring sun, lights of vehicles travelling in the opposite direction etc.);

- windscreen obscured (by dirt, ice, snow, condensation etc.);

- ...

In these conditions, the system may not react or may brake inadvertently.

Limitation of the system operation

- Each time the vehicle is started, the system carries out a calibration according to the vehicle surroundings and may be inactive for a length of time between approximately two and five minutes;

- A vehicle travelling in the opposite direction will not trigger any alert or affect operation of the system;

- The radar and camera zones must be kept clean and free of any tampering in order to ensure the proper operation of the system;

- the system may not respond to small vehicles such as motorbikes as effectively as to other vehicles;

- the system may not operate properly when the road surface is slippery (rain, snow, black ice, etc.);

- to ensure correct operation, the system needs to distinguish the complete outline of the pedestrian. So the system cannot detect:

- pedestrians in the darkness or in poor lighting conditions;

- partially visible pedestrians:

- pedestrians less than approximately 80 cm tall;

- pedestrians carrying large objects;

- ...

In these conditions, the system may not react or may brake inadvertently.

Deactivating the function

You must disable the function if:

- the brake lights are not functioning;

- the area of the camera has been damaged (e.g. on the inside or outside of the windscreen);

- the front of the vehicle was damaged (impact, scratch on the radar, etc.);

- the vehicle is being towed (breakdowns);

- the windscreen is cracked or distorted (do not carry out windscreen repairs in this area; have it changed by an approved dealer);

- you are not driving on a paved road.

In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.

Halting the function

You can halt the active braking function at any time by tapping the accelerator pedal or by turning the steering wheel in a collision avoidance manoeuvre.
