BLIND SPOT WARNING

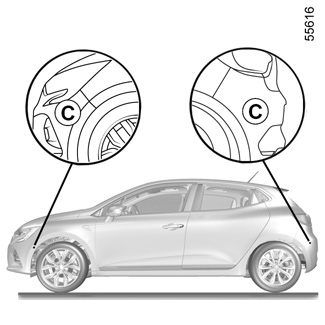

Using information from the sensors installed on each side of the rear bumper (area C), the function warns the driver:

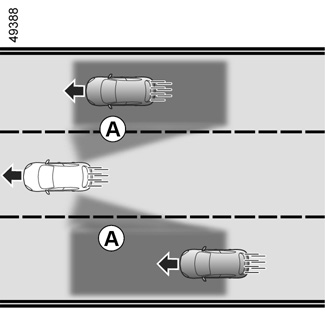

- when another vehicle appears in the detection area A;
and/or

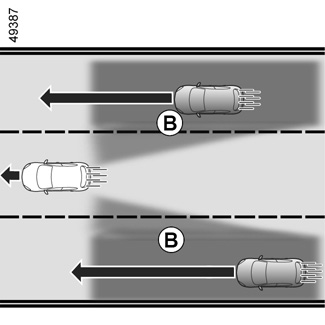

- when there is a risk of collision with a vehicle that is in area B, driving faster than you.
The function warns you when the vehicle is travelling at a speed above approximately 9 mph (15 km/h).
This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle.
Special feature
Make sure that the radar area C is not obscured (by stickers, mud, snow etc.).
If a radar is obscured, the message “Side radars no visibility” will appear on the instrument panel. Clean the area where the sensors are located.
Activation/deactivation

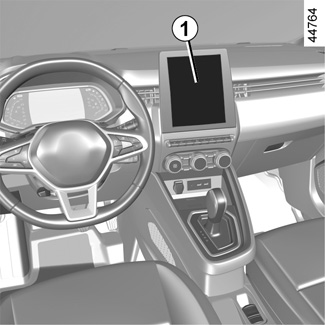

Vehicles fitted with a multimedia screen 1
To activate or deactivate the function, refer to the multimedia instructions. Select “ON” or “OFF”.
Vehicles not fitted with a multimedia screen
- With the vehicle stopped, press the switch 2 as many times as required to reach the “Vehicle” tab;
- press the 3 or 4 control repeatedly to reach the “Settings” menu. Press the switch 5 OK;
- press the 3 or 4 control repeatedly to reach the “DRIVING ASSIST” menu. Press the switch 5 OK;
- press the 3 or 4 control repeatedly to reach the “Blind spot alert” menu and press the 5 OK switch;
- press the switch 5 OK again to activate or deactivate the function:
= function activated
< function deactivated
The system’s detection range operates according to a standard lane width. When driving in a narrow lane, the function may warn you when a vehicle is detected further away than the nearest lane.
Indicator 6

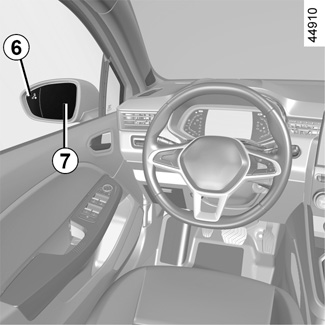

An indicator light 6 is located on each rear view mirror 7.
Note: clean the rear view mirrors 7 regularly so that the indicators 6 can be seen.
Operation
The function warns you when the speed of your vehicle is over approximately 9 mph (15 km/h) and:
- when another vehicle is in the blind spot area A and travelling in the same direction as your vehicle;
- when a vehicle approaches quickly from the rear in an adjacent lane within the range of detection area B.
If you overtake another vehicle, the indicator 6 will only come on if that vehicle remains for a long enough period in your vehicle’s blind spot A.
The function does not notify the driver if the other vehicles are not moving.

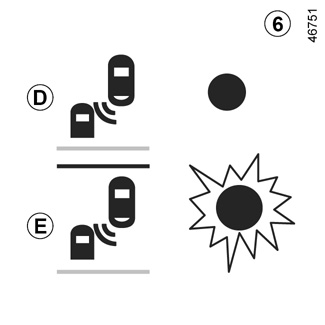

Display D
First warning: direction indicator not activated, the 6 warning light indicates that a vehicle is detected in the blind spot area and/or that a vehicle is rapidly approaching from the rear in an adjacent lane.
Display E
Direction indicator activated, the 6 warning light flashes when the function detects a vehicle in the blind spot warning area and/or a vehicle is rapidly approaching from the rear on the side towards which you will turn the wheel. If you cancel the direction indicator, the function will return to the initial warning (display D).
When the engine is started, the system adopts the last status saved before the ignition was switched off (refer to the previous pages).
Conditions for non-function
- When driving on a road with tight bends;
- in reverse.
If the vehicle is equipped with a towbar recognised by the system, the “Trailer: blind spot alert off” message displayed on the instrument panel informs you that the function is not operational. For information on the range of equipment adapted to your vehicle, we advise you to consult an approved Dealer.
Operating faults
If the system detects a fault, the message “Side radars to check” is displayed on the instrument panel. Consult an approved dealer.
Due to the presence of sensors behind the bumper, it is advisable to entrust any operation on the bumper (repair, replacement, paintwork, etc.) to a qualified professional.
- The system’s detection range operates according to a standard lane width. If you are driving in wide traffic lanes, the system might not be able to detect a vehicle in the blind spot.
- The system might be disrupted momentarily if it is exposed to strong electromagnetic waves (as beneath high-tension power lines) or to very poor weather conditions (heavy rain, snow etc.). Remain aware of driving conditions.
There is a risk of accidents.
This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle.
The driver should always adapt their speed to the traffic conditions, regardless of the system indications.
The system should under no circumstances be taken to be an obstacle detector or an anti-collision system.
System servicing/repairs
- In the event of an impact, radar alignment may be changed, and its operation will consequently be affected. Deactivate the function and consult an authorised dealer.
- Any work in the area where the radars are located (repairs, replacements, etc.) must be carried out by a qualified professional.
Only an authorised dealer is qualified to service the system.
System disturbance
Some conditions can disturb or damage the operation of the system, such as:
- complex surroundings (metal bridges, tunnels, roads with barriers at the edge, etc.);
- poor weather conditions (snow, hail, black ice, etc.).
Risk of false alarms or absence of warnings
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
Limitation of the system operation
- The radar area should be kept clean and free of any modifications in order to ensure the proper operation of the system.
- Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system.
- When turning into a bend, the radars may temporarily cease to detect vehicles in adjacent lanes.
- The function may warn you late when two other vehicles are approaching from the rear, side by side in the adjacent lanes (driving on a 3-lane road) and at a much higher speed than your vehicle.
- The system may not provide a warning when the other vehicles are travelling at a significantly different speed.
- If the vehicle is being overtaken by a long vehicle (e.g. heavy goods vehicle overtaking at a similar speed to the vehicle) the system may interrupt the warning before the end of the manoeuvre.
- The vehicle is travelling on a winding road.
Deactivating the function
You must disable the function if:
- the radar area has been damaged (rear bumper);
- the vehicle is fitted with a towbar that is not recognised by the system.
