DISPLAYS AND INDICATORS

  • 1
  • 2
  • 3
  • 4
  • 5

Engine oil level low warning

When the engine is started, the instrument panel display alerts you if the minimum oil level is reached. ENGINE OIL LEVEL: general information.

The first time the warning appears, it can be cleared by pressing 1 "OK ".

Subsequent warnings will disappear automatically after around 30 seconds.

Instrument panel in miles

(option to switch to km/h)

Vehicles not fitted with a multimedia screen

- With the ignition off, press the 2 switch as many times as required to reach the vehicle tab 5;

- press 3 or 4 repeatedly to access “Settings”, then press 1 “OK”;

- repeat the same operation to access “DASHBOARD”, then “Units”.

Vehicles fitted with a multimedia screen.

Please refer to the multimedia instructions to select the audio system.

Note: in both cases, once the battery is switched off, the on-board computer automatically returns to the original unit of measurement.

To return to the previous mode, repeat the same operation.

Please refer to the multimedia instructions for more information.

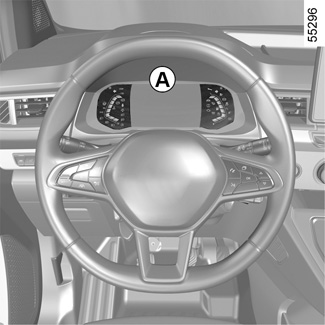

Instrument panel A

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with the content and colours of your choice.

For vehicles fitted with a multimedia screen, refer to the multimedia instructions.

For vehicles not fitted with a multimedia screen VEHICLE SETTINGS CUSTOMISATION MENU.

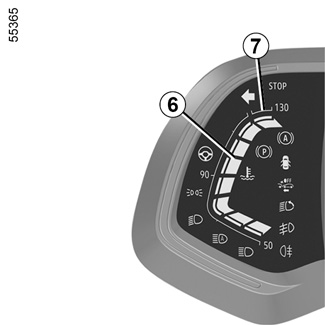

Coolant temperature indicator 6

In normal use, indicator 6 should be before area 7. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

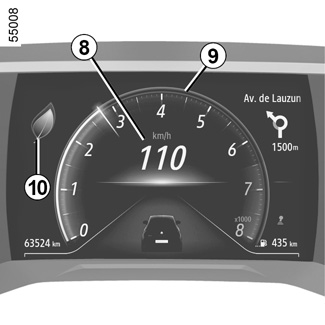

Speedometer 8

Depending on the style selected, the display varies.

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Rev counter 9

(graduations x 1000)

This is displayed differently according to how the instrument panel is customised. Depending on the style selected, it may not be displayed.

Driving style indicator 10 DRIVING ADVICE, ECO DRIVING

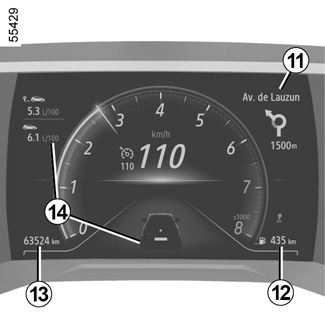

Multimedia information 11

Depending on the vehicle, you can display information from the multimedia screen (the compass, telephone, navigation, etc.).

Please refer to the multimedia instructions for more information.

Estimated mileage with remaining fuel 12

The value is displayed after driving 400 metres. TRIP COMPUTER AND WARNING SYSTEM: journey parameters.

Total mileage recorder 13 TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Trip computer 14 TRIP COMPUTER: general information

Fuel gauge 15

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

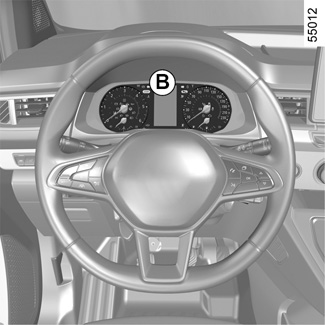

Instrument panel B

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with colours of your choice. For vehicles fitted with a multimedia screen, refer to the multimedia instructions.

For vehicles not fitted with a navigation system, refer to the information on “Vehicle settings customisation menu”in Section 1.

Rev counter 16

(graduations x 1000)

Coolant temperature indicator 18

In normal use, the indicator 18 should be before the red zone 17. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

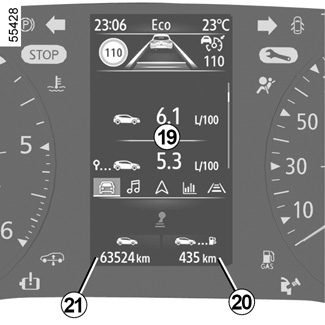

Trip computer 19

TRIP COMPUTER: general information

Estimated mileage with remaining fuel 20

The value is displayed after driving 400 metres.

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Total mileage recorder 21

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Driving style indicator 22 DRIVING ADVICE, ECO DRIVING

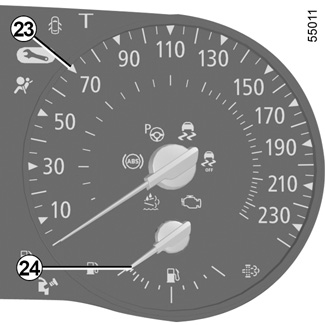

Fuel gauge 24

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

Speedometers 23 and, depending on the vehicle, 25

(km or miles per hour)

Control your speed according to the approved speedometer only 23.

The indicator 25 is provided as an indication.

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Instrument panel C

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Rev counter 25

(scale x 1,000)

Speedometers 26 and, depending on the vehicle, 27

(km or miles per hour)

Control your speed according to the approved speedometer only 26.

The indicator 27 is provided as an indication.

Gear change indicator 28 DRIVING ADVICE, ECO DRIVING

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Fuel gauge 29

The number of squares lit shows the fuel level. When it is at minimum, the squares disappear and the low fuel level warning light comes on, depending on the vehicle.
