Rear view mirrors

Exterior rear view mirrors

Adjustment
Select the door mirror using switch 2, then use button 1 to adjust it to the desired position.
Heated rear view mirrors
The de-icing is carried out in conjunction with the rear screen de-icing MANUAL AIR CONDITIONING, HEATING SYSTEMAUTOMATIC CLIMATE CONTROL.
WARNING
For safety reasons, carry out any adjustments while the vehicle is stationary.

Folding rear view mirrors

(depending on the vehicle)

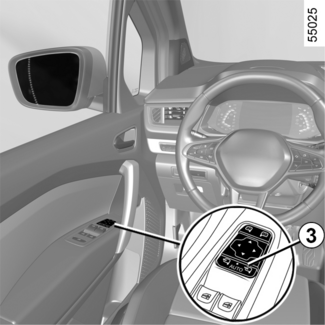

The rear view mirrors automatically fold in when the vehicle is locked (switch 3 in position B).
In any case, you can make the door mirrors fold in (switch 3 in position C) or fold out (switch 3 in position A).
Automatic mode is then deactivated. To reactivate it, set the switch 3 to position B.
WARNING
Objects observed in the rear view mirror glass are actually closer than they appear. For your safety, take this into account in order to correctly assess the distance before any manoeuvre.
Welcome and goodbye function
(depending on the vehicle)
Refer to the multimedia instructions to access the welcome and goodbye function.
Activate or deactivate the function by selecting (ON or OFF).
Depending on the selected choice, the door mirrors will fold out:
  • when the ignition is next switched on (function deactivated);
  • when the card is detected or the vehicle is unlocked (function activated).
WARNING
The driver’s exterior rear view mirror may have two clearly defined zones. Zone E shows what can normally be seen in an ordinary door mirror. Zone D increases rear side visibility.

Manually folding door mirrors

To fold down the door mirror, pull it towards the door window until you hear a mechanical click.
To return the door mirror to its operating position, proceed in the reverse order. Ensure that it is correctly locked in position.
Special case
When the rear view mirror has been manually deployed or folded back, it is possible to reset it to a usage position.
To do this, press the switch 3. A mechanical noise from the rear view mirror unit will be heard.
If a tapping noise cannot be heard, press the switch 3 again until the tapping noise can be heard from the door mirror.

Interior rear view mirror

Its position can be adjusted.
Rear view mirror with lever 4
When driving at night, to avoid being dazzled by the headlights of the vehicle behind, shift the small lever 4 located behind the rear view mirror.
Rear view mirror without lever 4
The rear view mirror automatically darkens when you are being followed by a vehicle which illuminates you or in very bright lighting.

Camera rear view system screen

The screen 5 can be positioned left to right and top to bottom CAMERA REAR VIEW.
WARNING
For safety reasons, carry out any adjustments while the vehicle is stationary.
The camera's field of vision does not cover the entire area behind the vehicle, particularly the blind spot area F.

Wide angle rear view mirror 7

(depending on the vehicle)
Lower the sun visor 6 to access the special mirror to increase side vision when manoeuvring.
The various zones seen by the driver are:
  • G in the wide-angle rear view mirror;
  • H via the front passenger window;
  • I in the door mirror.
