STARTING, STOPPING THE ENGINE: vehicle with card

  • 1
  • 2
  • 3
  • 4
  • 5

Conditions for starting the engine

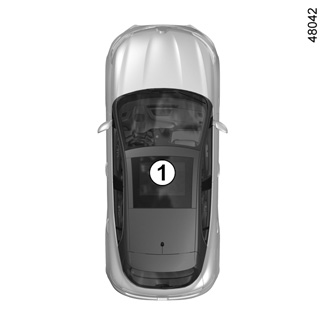

The card must be inserted in detection zone 1.

To start:

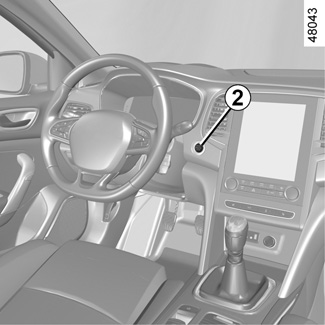

- vehicles with an automatic gearbox, place the lever in position P, depress the brake pedal and press button 2;

- on vehicles with a manual gearbox, press the brake or clutch pedal and press button 2. If a gear is engaged, also press the clutch pedal.

Special features

- If one of starting conditions is not applied, the message “Press Brake + START” or “Press Clutch + Start” or “Select Gearbox Position “P” is displayed on the instrument panel;

- in some cases, it will be necessary to move the steering wheel whilst pressing the start button 2 to help unlock the steering column; the message “Turn Steering Wheel + START” will warn you of this;

“Hands-free” starting with the tailgate open

In this case, the card should not be located in the luggage compartment, to prevent the risk of loss.

Driver’s responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors, for example.

Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

Accessories function

(switching on the ignition)

Once you have gained access to your vehicle, you may use some of its functions (radio, navigation, wipers, etc.).

To use the other functions, with the card in the passenger compartment, press the 2 button without pressing the pedals.

Operating faults

In certain cases, the hands-free card may not work:

- when the card battery is drained etc.

- near to appliances operating on the same frequency as the card (monitor, mobile phone, video game, etc.);

- vehicle located in a high electromagnetic radiation zone.

The message “Place card on zone + START” appears on the instrument panel.

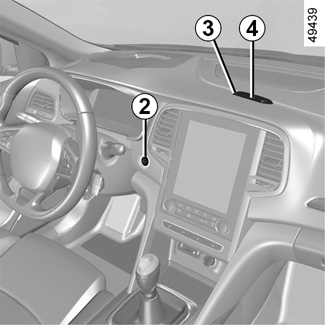

Press the brake or clutch pedal, then place the card 3 (button side) during approximately two seconds on the placement area 4.

Press the 2 button to start the vehicle. The message goes out.

Conditions for stopping the engine

The vehicle must stationary, with the lever positioned in N or P for vehicles with an automatic transmission.

With the card in the vehicle, press button 2: the engine stops. The steering column is locked when the driver’s door is opened or the vehicle is locked.

If the card is no longer in the passenger compartment when you try to switch the engine off, the message “Keycard absent : press/hold START” appears on the instrument panel: press button 2 for longer than two seconds. If the card is no longer in the passenger compartment, make sure you can retrieve it before pressing and holding the button. Without the card, you will not be able to start.

With the engine switched off, any accessories being used (radio, etc.) will continue to function for approximately 10 minutes.

When the driver’s door is opened, the accessories stop working.

Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo, power-assisted steering, etc., and the passive safety devices such as the airbags and pretensioners will no longer operate.

When you leave your vehicle, especially if you have your card with you, check that the engine is completely switched off.

Driver’s responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors, for example.

Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.
