REAR LIGHTS AND SIDE LIGHTS: changing bulbs

  • 1
  • 2
  • 3
  • 4
  • 5

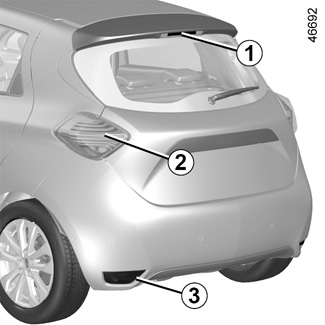

High level brake light 1

Consult an approved dealer.

Direction indicator/brake and side lights 2

Consult an approved dealer.

Reversing lights and rear fog lights 3

Access bulb holder via the underneath of the vehicle, then unscrew it by turning towards the centre of the vehicle.

Fog light

Bulb type: PR21W.

Reversing light

Bulb type: P21W.

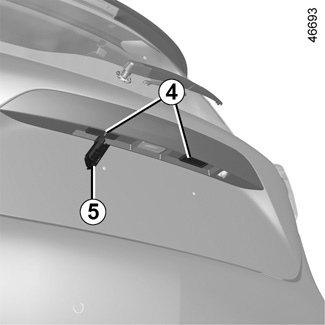

Number plate lights 4

- Unclip light 4 by pressing tab 5;

- remove the light cover to gain access to the bulb.

Bulb type: W5W.

The bulbs are under pressure and can break when replaced.

Risk of injury.

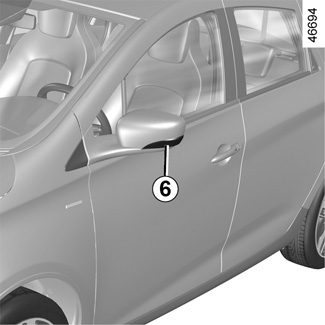

Indicator lights 6

Consult an approved dealer.
