DISPLAYS AND INDICATORS

  • 1
  • 2
  • 3
  • 4
  • 5

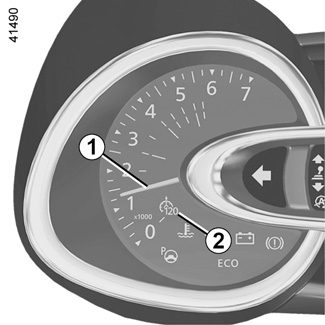

Rev counter 1

(graduations x 1000)

Overspeed buzzer

Depending on the vehicle, warning light 2 comes on accompanied by a beep when the vehicle is travelling at over 72 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 72 mph (120 km/h).

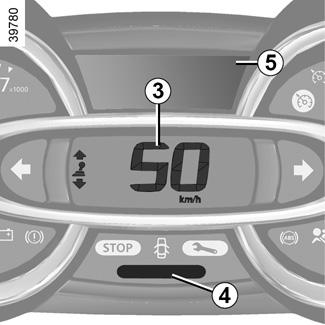

Speedometer 3

(km or miles per hour)

Driving style indicator 4

Please refer to the information on “Driving advice, Eco-driving” in Section 2.

Low engine oil level warning

When the engine is started, display 5 alerts the driver when the oil level is at its minimum. Refer to the information on the “Engine oil level” in Section 4.

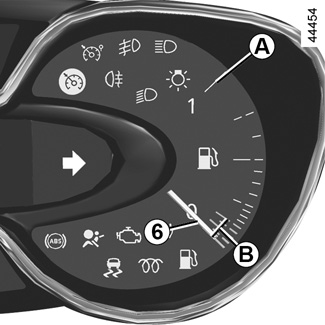

Fuel gauge 6

Zone A: Indicates that the tank is full.

Zone B: Indicates that the tank is down to reserve level and the fuel warning light comes on. Fill up as soon as possible.

Instrument panel 5 in miles

(option to switch to km/h)

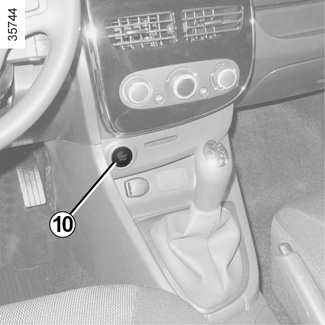

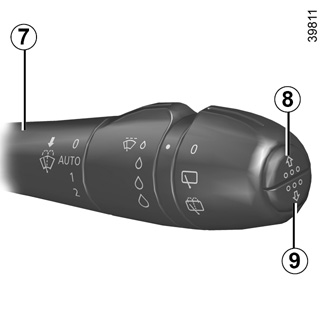

- Ignition switched off, press button 8 or 9 at the end of stalk 7 and the start button 10;

- the speedometer unit indicator flashes for approximately ten seconds, then the new unit is displayed: release button 8 or 9 when the unit stops flashing.

To return to the previous mode, repeat the same operation.

Note: once the battery is switched off, the trip computer and warning system automatically returns to the original unit of measurement.
