DISPLAYS AND INDICATORS

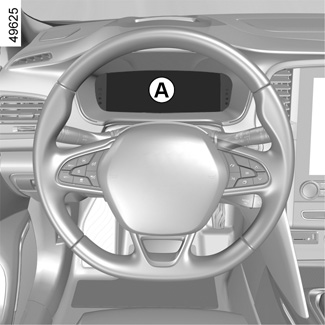

Instrument panel A
lights up when the driver’s door is opened. In some cases, the appearance of a warning light is accompanied by a message.

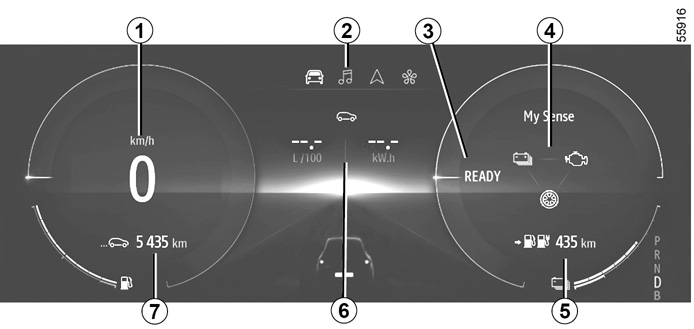

Speedometer 1
Multimedia information 2
Depending on the vehicle, you can display information from the multimedia screen (the compass, telephone, navigation etc.).
Please refer to the multimedia instructions for further information.
Message indicating vehicle ready for driving 3
The message READY appears when the ignition is switched-on and disappears when the vehicle speed exceeds 3 mph (5 km/h).
Energy flow indicator 4
HYBRID VEHICLE SYSTEM: operation.
Estimated range combining electrical energy and combustion energy 5.
Trip computer 6
Total mileage recorder 7

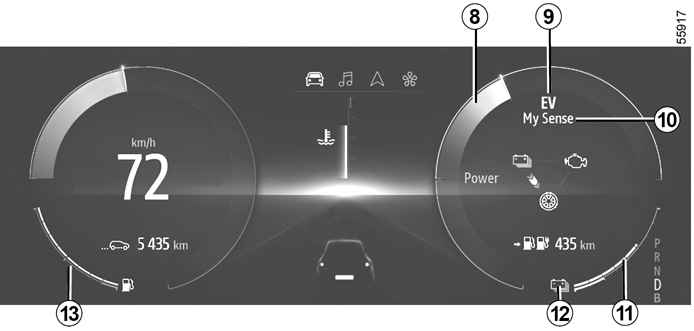

Charge meter 8 DRIVING ADVICE, ECO-DRIVING
Electric operating mode warning light 9
It is displayed when only the traction battery is powering movement of the vehicle.
Driving mode selected 10
Battery level remaining 11
If the level indicator is white: the vehicle is maintaining the traction battery charging using the combustion engine.
Traction battery level low
In the event of extreme use at low speed, the traction battery charge may drop to a low level.
The 12 warning light is displayed in yellow to warn you.
The electric motor performance will be limited to ensure that the hybrid system operates correctly, until the battery charge level becomes sufficient.
Opt for a smoother driving style or, if possible, stop the vehicle without switching off the ignition until the 12 warning light appears in blue once again.
Fuel gauge 13
If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill the tank as soon as possible, whatever the remaining traction battery level. Vehicle performance will be reduced if the fuel tank level drops too low. If the fuel tank is empty, fill it with at least 1.76 gal (8 litres). Otherwise the hybrid mode will remain unavailable.

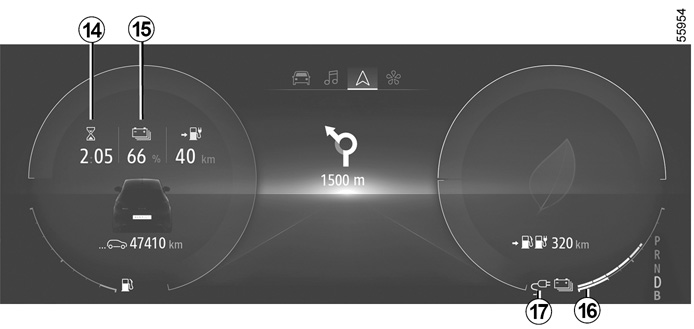

Remaining charge time 14
Traction battery charge percentage 15
Charge level 16
The gauge indicates the level of energy remaining.
Charging cord “Plugged In” warning light 17
This comes on when the charging cord is plugged into the vehicle.

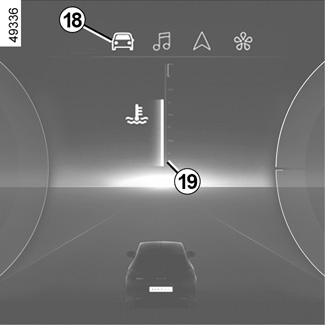

Combustion engine temperature display
The temperature of the combustion engine 19 can be consulted via the “Vehicle” tab 18.

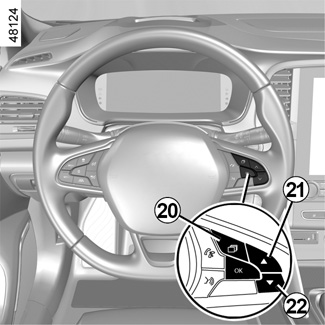

To do this, select the “Vehicle” tab 18 by tapping switch 20 as many times as necessary, then tap switch 21 or 22 to read the engine temperature.
