LUGGAGE COMPARTMENT: 4 door version
Depending on the vehicle, there are various ways to unlock and operate the luggage compartment lid:
- by the locking/unlocking button on the remote control key (refer to the information on “Radiofrequency Remote Control: use” in section 1);
- by the locking/unlocking button on card RENAULT (refer to the information on "Card RENAULT: use in section 1);
- via the external boot lid control;
- using the hands-free function;
- using the dashboard control.
Manual controls
To open

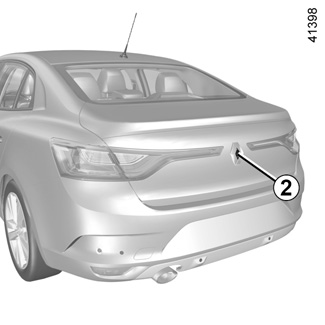

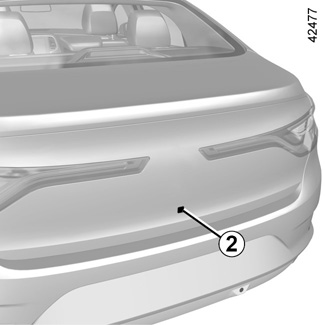

Depending on the vehicle, press the dashboard control 1 or the button 2, the tailgate opens automatically.
Note: ensure that the surrounding space is sufficient to permit operation of the boot lid before you open it.
To close
Lower the boot lid using the handle inside the boot to assist you.
When opening or closing the luggage compartment lid, ensure that nothing obstructs the manoeuvre.
As a safety precaution, the doors should only be opened or closed when the vehicle is stationary.
Risk of injury.
Ensure that nobody is close to the moving parts when opening/closing the boot lid.
Risk of injury.
Using the hands-free function
The hands-free function enables access to the luggage compartment when you have your hands full.

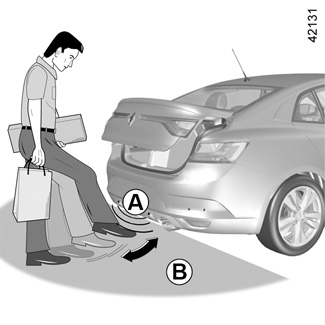

Ensure that the RENAULT card is approximately 1 metre away in the central area of the rear bumper of the vehicle (area B). With the ignition off, stand approximately 45 cm from the vehicle’s rear bumper and move your foot forwards and backwards in area A.
The sensor detects the approach and then the removal of your foot and triggers the opening of the boot lid.
Do not keep your foot in the air. Perform the movement without stopping and without touching the rear bumper.
Activation/deactivation of the hands-free function
From the multimedia screen, select “Vehicle”, “User settings”, “Use handsfree card: open/close”. Select “ON" or "OFF" to activate or deactivate the function.
Usage features of the hands-free function
- The hands-free function is no longer available after a few days of lack of movement of the vehicle, or after around 15 minutes if the vehicle is unlocked. To reactivate it, use the unlocking button on the RENAULT card.
- The hands-free function is only available if the vehicle is stationary and the engine is switched off (and not on standby with the Stop and start function).
- The ‘hands-free’ feature may not work if the vehicle is equipped with a towbar or is in an area of high electromagnetic radiation.
User precautions
- Before opening the tailgate, ensure that the surrounding space is sufficient to permit operation of the tailgate. Otherwise, stop the movement of the boot lid before it makes contact.
- The system may experience temporary difficulties if one of the sensors integrated in the rear of the bumper is obscured (by dirt, mud, snow, gritting salt, etc.). Clean the sensors. If there is still a problem, contact an approved dealer.
Note: in very cold weather conditions, the automatic opening may not work if the tailgate seals are frozen.
Disable the “hands-free” function before you:
- wash the vehicle in a roller-type car wash;
- wash the vehicle by hand;
- handle the towbar;
- ...
Risk of accidental opening of the luggage compartment lid which may cause injury.
The attachment of any carrying device (bike rack, luggage box etc.) resting on the luggage compartment lid is prohibited. To install a carrying device on your vehicle, contact an Approved Dealer.
Opening the doors manually from the inside
If it is impossible to unlock the tailgate, it can be done manually from inside:
- access the luggage compartment by folding forward the seatback(s) of the rear bench seat;
- insert a flat-blade screwdriver or similar under the carpet above the mechanism 3 and slide the unit as shown in the illustration;
- push the boot lid to open it.
