DISPLAYS AND INDICATORS

  • 1
  • 2
  • 3
  • 4
  • 5

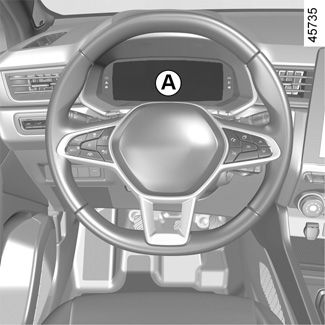

Instrument panel A

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with the content and colours of your choice.

For vehicles fitted with a multimedia screen, refer to the multimedia instructions.

For vehicles not fitted with a multimedia screen VEHICLE SETTINGS CUSTOMISATION MENU.

Speedometer 1

Rev counter 2

(graduations x 1000)

Depending on the selected customisation, it may not be displayed.

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Driving style indicator 3 DRIVING ADVICE, ECO DRIVING

Total mileage recorder 4 TRIP COMPUTER: journey parameters

Trip computer 5 TRIP COMPUTER: general information

Estimated mileage with remaining fuel 6

The value is displayed after driving 400 metres. TRIP COMPUTER: journey parameters.

Trip computer and multimedia information 7

Depending on the vehicle, you can display information from the multimedia screen (compass, telephone, navigation, etc.) or information from the trip computer.

Please refer to the multimedia instructions for more information.

Coolant temperature indicator 9

In normal use, indicator 9 should be before area 8. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

Fuel gauge 10

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

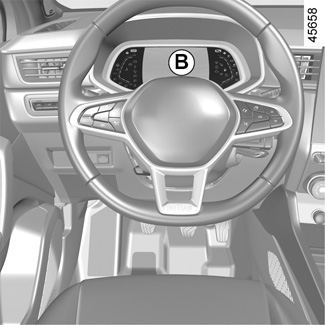

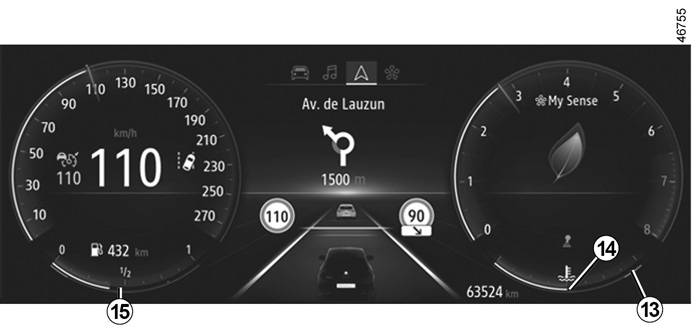

Instrument panel B

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with the content and colours of your choice.

For vehicles fitted with a multimedia screen, refer to the multimedia instructions.

For vehicles not fitted with a multimedia screen VEHICLE SETTINGS CUSTOMISATION MENU.

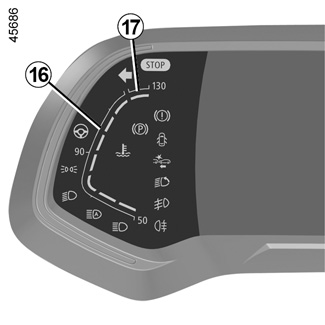

Coolant temperature indicator 11

In normal use, indicator 11 should be before area 12. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

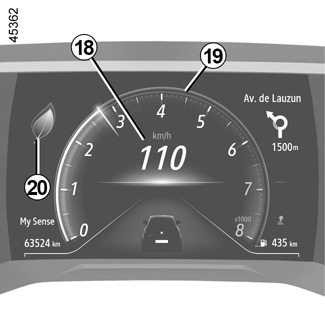

Speedometer 13

Depending on the style selected, the display varies.

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Rev counter 14

(graduations x 1000)

This is displayed differently according to how the instrument panel is customised. Depending on the style selected, it may not be displayed.

Driving style indicator 15 DRIVING ADVICE, ECO DRIVING

Multimedia information 16

Depending on the vehicle, you can display information from the multimedia screen (the compass, telephone, navigation, etc.).

Please refer to the multimedia instructions for more information.

Estimated mileage with remaining fuel 17

The value is displayed after driving 400 metres. TRIP COMPUTER: journey parameters.

Total mileage recorder 18 TRIP COMPUTER: journey parameters

Trip computer 19 TRIP COMPUTER: general information

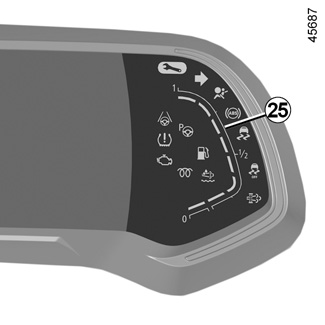

Fuel gauge 20

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

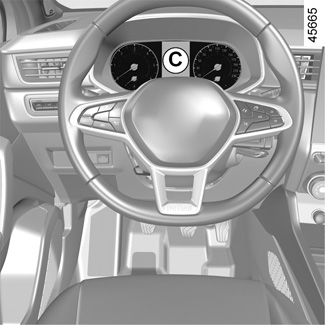

Instrument panel C

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with colours of your choice. For vehicles fitted with a multimedia screen, refer to the multimedia instructions.

For vehicle not fitted with a navigation system VEHICLE SETTINGS CUSTOMISATION MENU.

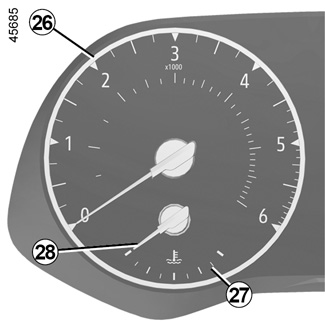

Rev counter 21

(graduations x 1000)

Coolant temperature indicator 23

In normal use, the indicator 23 should be before the red zone 22. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

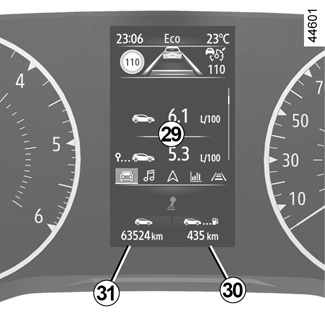

Trip computer 24

TRIP COMPUTER: general information

Estimated mileage with remaining fuel 25

The value is displayed after driving 400 metres.

TRIP COMPUTER: journey parameters

Total mileage recorder 26

TRIP COMPUTER: journey parameters

Driving style indicator 27 DRIVING ADVICE, ECO DRIVING

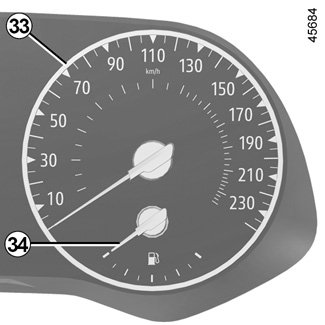

Speedometer 28

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Fuel gauge 29

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

Engine oil level low warning

When the engine is started, the instrument panel display alerts you if the minimum oil level is reached. ENGINE OIL LEVEL: general information.

The first time the warning appears, it can be cleared by pressing switch 30OK”.

Subsequent warnings will disappear automatically after around 30 seconds.

Instrument panel in miles

(option to switch to km/h)

Vehicles not fitted with a multimedia screen

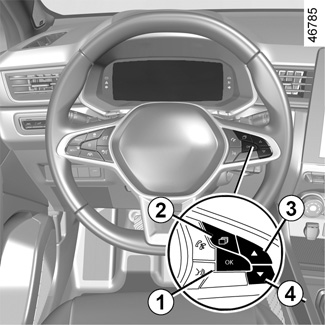

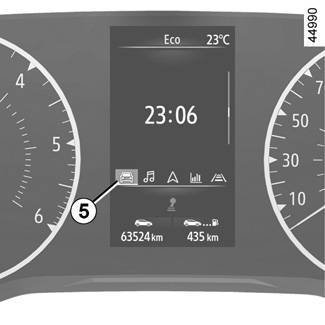

- With the ignition off, press the 31 switch as many times as required to reach the vehicle tab 34;

- press the 32 or 33 control repeatedly to reach the “Settings”, then press the 30OK” switch;

- repeat the same operation to access “DASHBOARD”, then “Units”.

Vehicles fitted with a multimedia screen.

Please refer to the multimedia instructions to select the audio system.

Note: in both cases, once the battery is switched off, the on-board computer automatically returns to the original unit of measurement.

To return to the previous mode, repeat the same operation.

Please refer to the multimedia instructions for more information.
